- Suitable For IoT Applications Like IoT Getaway, Wireless Router, Intelligent Data Acquisition…

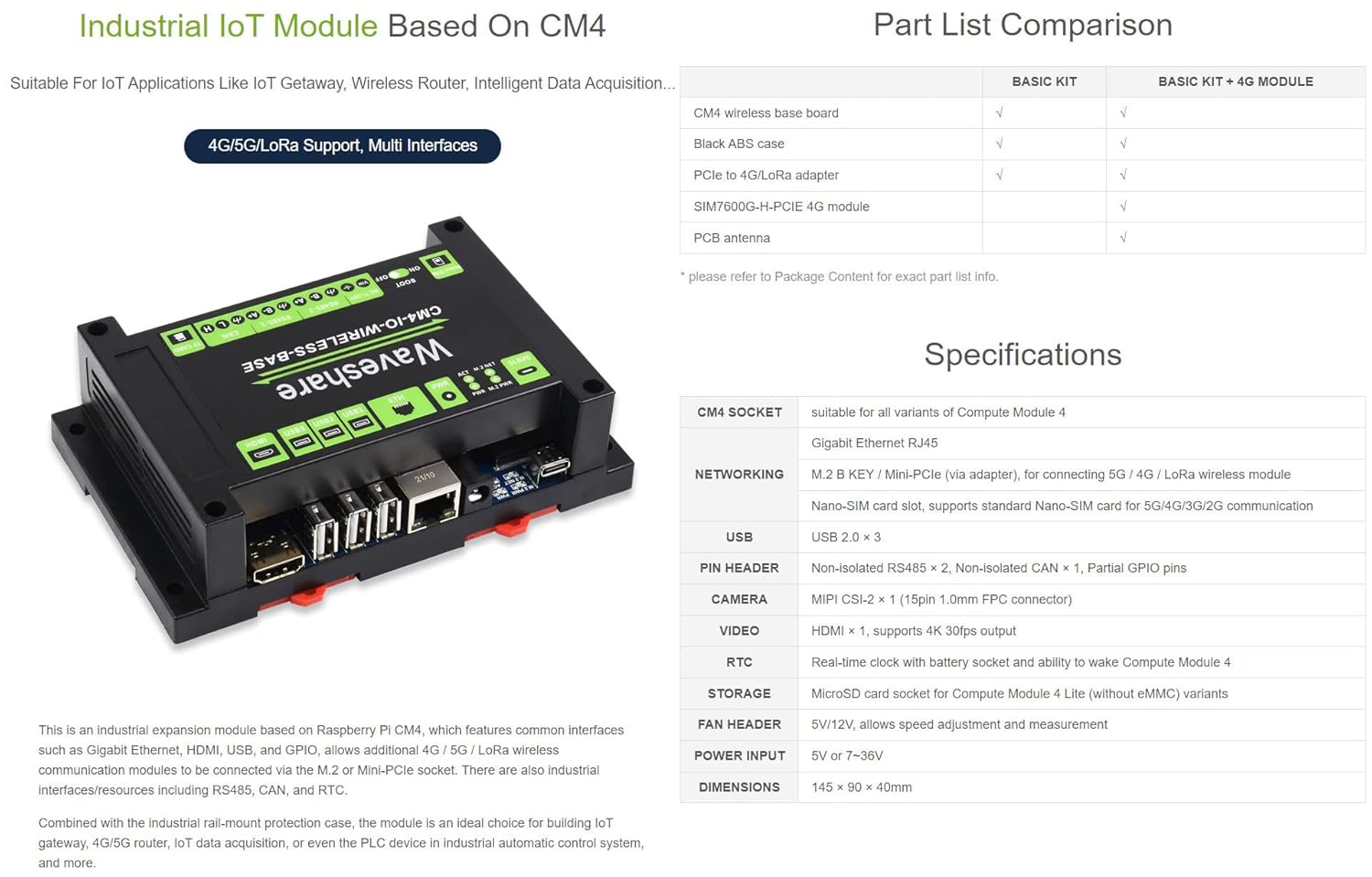

- This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket.
- There are also industrial interfaces/resources including RS485, CAN, and RTC.

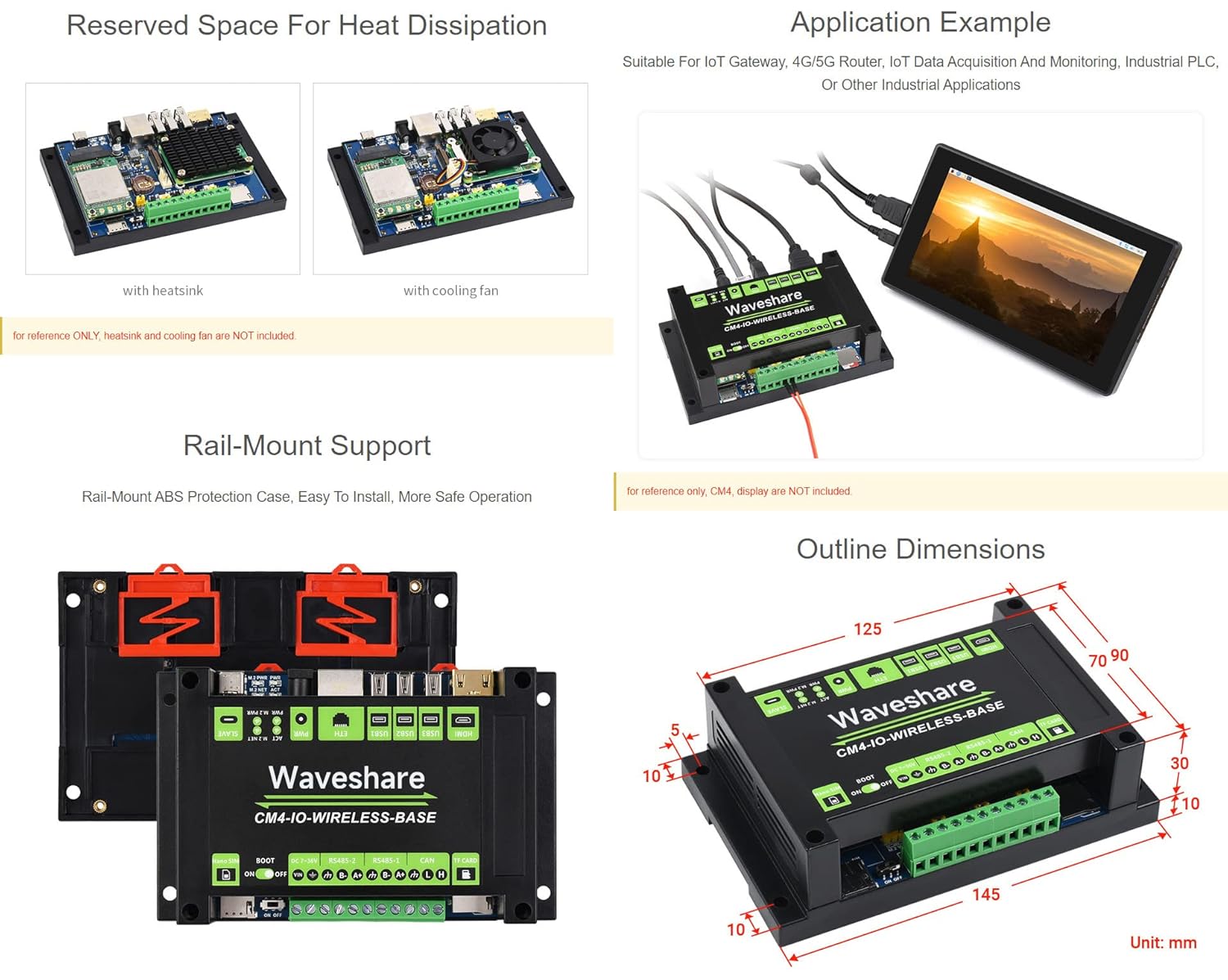

- Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.

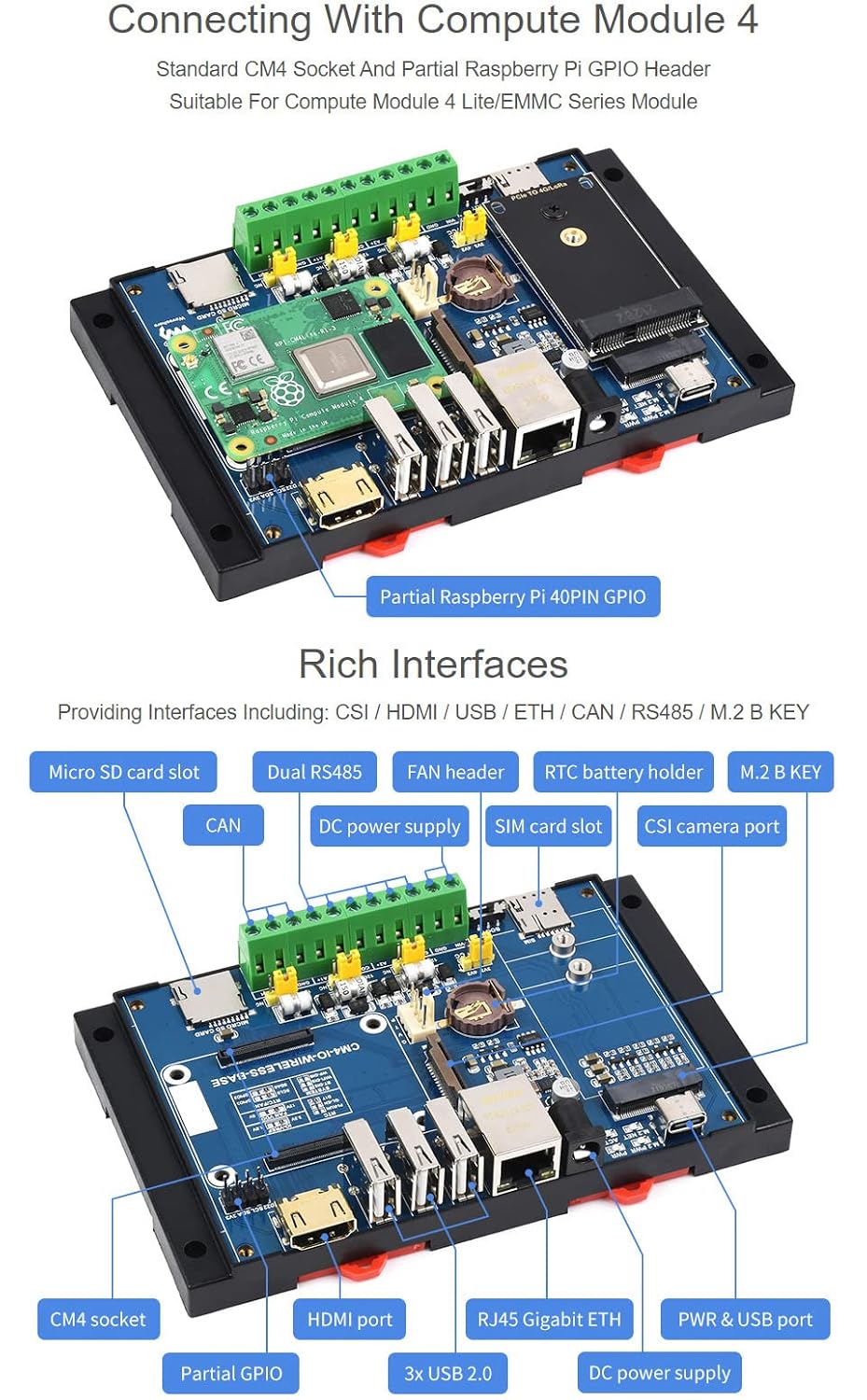

- Standard CM4 Socket And Partial Raspberry Pi GPIO Header. Suitable For Compute Module 4 Lite/EMMC Series Module
Back to products
ESP32-WROOM-32 Core Dev Board for ESP32 Development, USB Type-C, WiFi+BT Module, Dual-Core Processing for IoT Projects (CH340)
Original price was: $350.00.$11.20Current price is: $11.20.

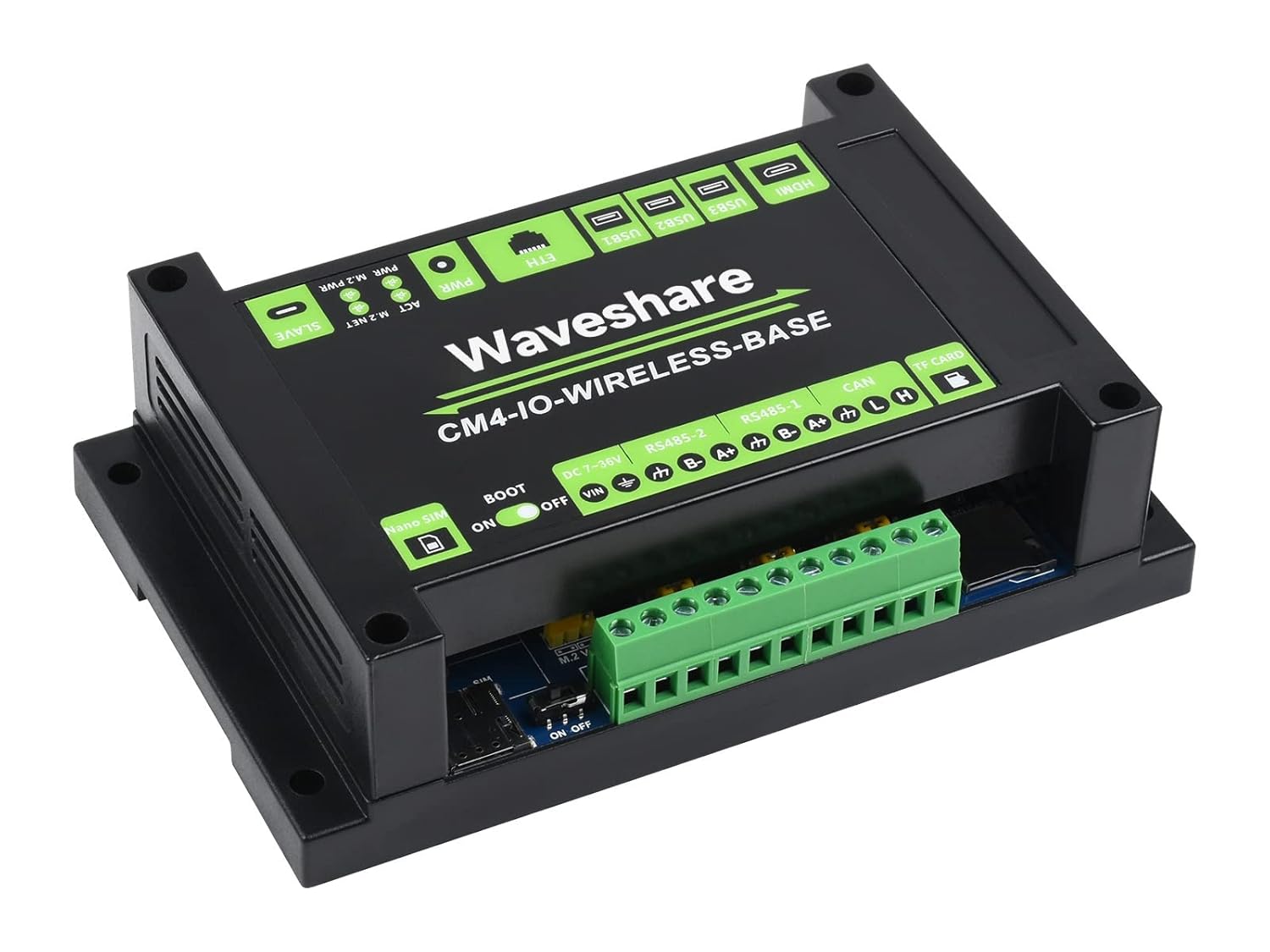

Waveshare Industrial IoT Expansion Module Designed for Raspberry Pi Compute Module 4
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$77.80
13
People watching this product now!
Payment Methods:
Description
Specification
Overview
| Processor Socket |
Compute Module 4 Socket |
|---|---|
| Compatible Devices |
Raspberry Pi Compute Module 4 |
| RAM Memory Technology |
LPDDR4 |
| Compatible Processors |
Raspberry Pi Compute Module 4 |
| Chipset Type |
Broadcom BCM2711 |
| Platform |
Linux |
| Memory Storage Capacity |
16 GB |
| Main Power Connector Type |
DC Jack |
| Graphics Card Interface |
PCI Express |
| Memory Slots Available |
4 |
| Number of Ports |
7 |
| System Bus Standard Supported |
SATA 3 |
| USB 2.0 |
2 |
| Total Usb Ports |
2 |
| Number of Ethernet Ports |
1 |
| Total Number of HDMI Ports |
1 |
| Brand |
Waveshare |
| Model Name |
CM4-IO-WIRELESS-BASE |
| Model Number |
CM4-IO-WIRELESS-BASE |
| Manufacturer |
Waveshare |
