- This LoRa board comes unassembled, soldering is required, not equipped with lithium battery.
- When you use lora esp32 915MHz, you need to use 2pcs together,one receiving and another sending.

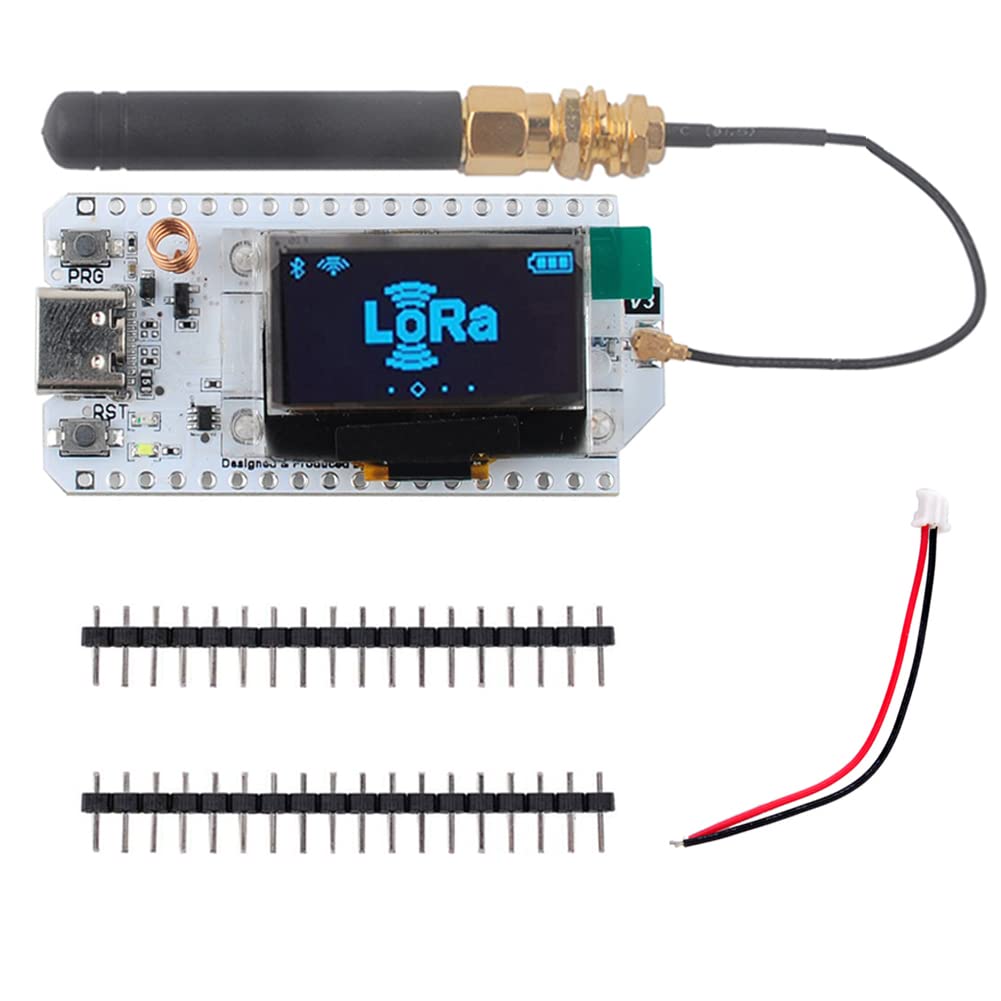

- You will receive, 1pcs 915MHz esp32 lora V3, 1pcs 915mhz lora antenna,and 1pcs 2pin 1.25mm connector.
- LoRa V3 board are an improvement over the V2 version, but they are not a replacement.
- LoRa 32 V2 use ESP32-D0WDQ6 MCU, but the V3 is ESP32-S3FN8, so pinout is different. The APIs used with the libraries are different, so programs written for V2 do not compile V3.

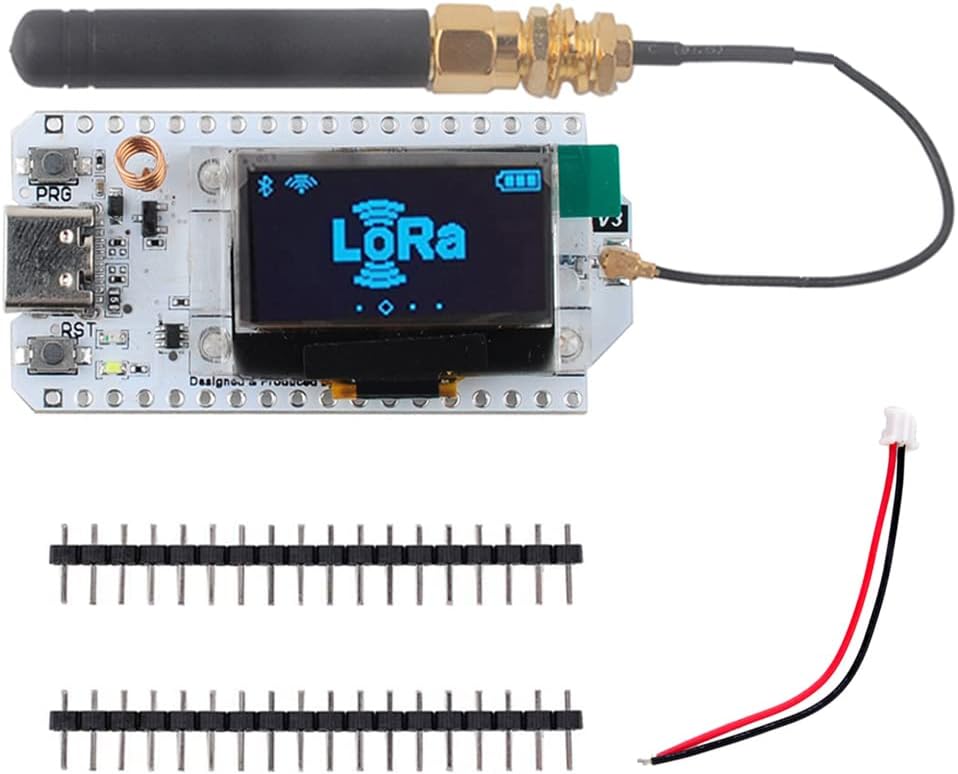

DIYmalls 915 ESP32 LoRa OLED Board V3 + 915MHz LoRa Antenna U.FL to SMA for Arduino IOT LoraWan Gateway, not Compatible with Heltec V2
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$31.10
16
People watching this product now!
Payment Methods:
Description
Specification
Overview
| Memory Storage Capacity |
8 MB |
|---|---|
| Processor Speed |
240 MHz |
| Connectivity Technology |
USB |
| Operating System |
PC |
| Processor Brand |
Espressif |
| Wireless Compability |
Bluetooth |
| Compatible Devices |
Monitor |
| RAM Memory Technology |
SRAM |
| Processor Count |
1 |
| Total Usb Ports |
1 |
| Brand |
DIYmalls |
| Model Name |
LoRa 32 V3 |
| Built-In Media |
1 x lora32 v3 |
| UPC |
747356634250 |
| Country of Origin |
China |
| Manufacturer |
DIYmalls – Heltec Automation |
| Item Weight |
0.8 Ounces |
